  • Product Name
  • Smart Digital Flow-Pressure Tester
  • Model
  • MWT500

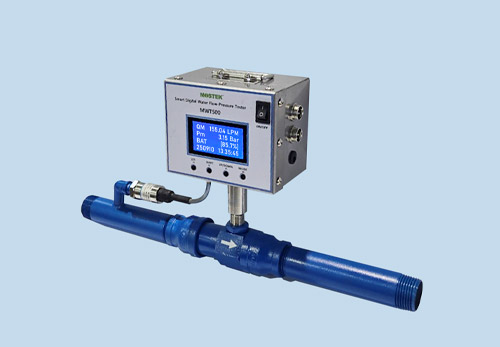

  • Smart Digital Flow-Pressure Tester

    The MWT500 series smart digital type meter integrated flow meter and pressure transmitter is high precision measuring instrument for measures at the same time for the fire water or industrial water.
    This instrument is most advanced and equipped with user friendly convenience function for highly accuracy, compact sized, wide measuring span, expanded display and programming. Outgrowing from the traditional water tester used a rota flow meter, adopted the turbine style flow meter which has a rapid response time and repeatability.
    Main construction is included a body of flow meter, pressure transmitter, display, key board of program setting and provides the function of monitoring in real time, printing out, stores, transmits for all measured data as well as provides the analog output for periodical performance verification.

    Feature and Application

    • Economy price, robust and compact design
    • Accuracy ± 1.0% FS, High repeatability ± 0.25%
    • Rechargeable battery embedded power supply / Adapter DC12V
    • Output 4-20 mA for flow and pressure
    • Expanded display for flow, pressure, battery %, date & time
    • Useful hydrant Φ 40A, Φ65A and hose Φ25A for industry
    • Improvement accuracy individual flow data verification using in-house calibration stand
    • Function of printing out data and data logger (option)
    • Suitable for portable type as converter integration or remote type

    Measuring Principle

    When fluid flows through the flow meter the fluid pushes impeller to rotate.Rotation speed is proportional to the volume of flow rates.

    A slice of magnetic approaches to the sensor loop, and through the variation of loop magnetized instantaneous volume, to directly acquire a proportional impulse Impeller sensor approaches to the sensor loop and changes the resistance of loop, and then this signals are analyzed by converter.
    The pressure of the fluid is amplified by piezo resistive sensor attached onto the flow body inner side and these signals gives data to display by an analog to digital converter in separately flow and pressure. Like these data can be printed directly in portable thermal printer’s paper and possible to be transmitted.


    Technical Specification

    • Compact Design, Stainless Steel housing
    • Operating Pressure : 1.0 ~ 1.6 MPa
    • Operating Temperature : 0 ~ 85℃ (Max)
    • Display for Flow, Pressure, Battery %, Date & Time
    • Power Supply Battery DC12V(use for 48 Hr) / Adapter DC12V(Full Charging for 2 hydrant)
    • Flow Medium : Water, Oil, Viscosity fluid
    • Accuracy : ±1.5% FS
    • Output : 4~20mA (Flow/Pressure)
    • Data Logger Software(option) 4ch sensor node
    • Data Printing Function(option) / Thermal Printer

    Nominal Flow Range

    ← Scroll left and right to view the content →
    Flow Body & Sensor Nominal Flow Range(LPM)
    Pressure = 1.6mPa
    Connection Size Process Connection
    Size(mm) Material Water C to C Length PT M Threaded
    20 SUS304 10~140 420mm DN20 PTM
    25 SUS304 15~230 420mm DN25 PTM
    32 SUS304 20~360 450mm DN32 PTM
    40 SUS304 30~500 500mm DN40 PTM
    50 SUS304 55~860 550mm DN59 PTM
    65 SUS304 90~1520 600mm DN65 PTM



    Dimensions


    Main Components Description


    Ordering Code
