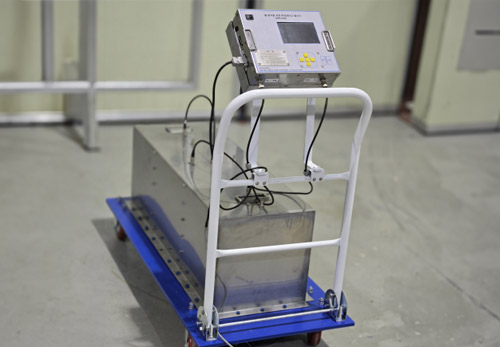

Model MGPR1000 is advanced an advanced ground penetration radar for detecting the water underground. Device is installed into totally sealing type housing and designed for easily assembling and dismantling for electronics as well as physical components as plug-in type. Dismantling module is composed for testing and performance verification without extra engineering job.

Operating principle

Operating principle of MGPR1000 is that transmits high electronic frequency (50MHz~200MHz) into underground and receives a reflection signal from the various material boundary layers, construction, and analyzes refection signal’s time and strength then it analyzes the underground embedment, status of underground, depth, types by non-destructive inspection.

As using this type principle, understands the characteristic of electronic frequency transmission and reflections, and the resolution is different from the detection depth of underground.

The stepwise principle of MGPR1000 transmit the high frequency electronic wave into the ground and then a received high frequency electronic wave is reflected by soil, rock, water. The received signal is then reflected or dispersed.

MGPR1000 controller receiver does accept the signal which returned with reflection. In controller measures the time flight between transmission and reception and calculates the depth of reflection layer using the speed of high frequency electronic wave.

Ultimately MGPR1000 determines the conditions of construction while visualizing for time of layer, depth, image after analyzation the information like as time of reflected and strength.
